Gewehr 98 C.G. Haenel 1916 61489g

PrayingMantis

Senior Member

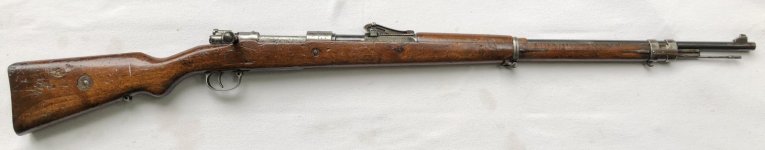

Picked this one up from another collector. I wanted to wait to do photos until I could clean it a little, but I couldn’t pass up the good light today. I’ll do another set later.

I was excited to get this one. It has its problems, a worm eaten stock and buffed metal, but it’s a straight bolt and rod mismatch Haenel with super crisp markings. Fascinating to see what parts come from which consortium maker. Interestingly, this one is mostly Haenel, only the barrel, bayo lug, rear sling attachment, buttplate, and one rear sight screw are Sauer while bands and trigger guard components are Schilling.

C.G. HAENEL SUHL 1916

Receiver 6149g c/B c/B c/B
Barrel 6149g c/N c/B c/B S&S BJ 159
Front Sight 49 c/B
Rear Sight Leaf 49 c/B
Rear Sight Base c/B
Rear Sight Slider 49 c/B
Sight Slider Tabs 49, 49 c/B, C/N
Ejector Box 49 c/B, c/B
Trigger Sear 49 c/B
Trigger c/B
Front Barrel Band 49 c/Q
Rear Barrel Band 49 c/Q
Trigger Guard 6149 c/Q c/Q
Trigger Guard Screws 49, 49 c/B, c/B
Floor Plate 49 c/Q
Follower 49 c/Q
Stock 6149g c/B c/RC
Stock Wrist c/B
Recoil Lug c/B
Rear Sling Attachment c/N
Buttplate 6149g c/N
Bayonet Lug 49 c/N
Handguard 6149 c/B


Attachments

  • ACE1F96E-25F0-4B9B-BB64-F5FEFF1CB3FD.jpeg
    78.9 KB · Views: 21
  • BC835A1D-4A58-4D23-8938-1624C746EF6E.jpeg
    81.6 KB · Views: 21
  • D524637C-AF80-4701-A9C4-00B3E680349A.jpeg
    260.1 KB · Views: 20
  • 77DB67C3-3392-4D82-BED2-C27023CEA621.jpeg
    291.4 KB · Views: 19
  • 9000B929-24A0-4EEA-A490-32382FF73F10.jpeg
    374.3 KB · Views: 17
  • EBF316FB-DE09-4660-B58A-7ACCA06E3C3A.jpeg
    337.6 KB · Views: 13
  • AD5A9AE0-BC1D-4929-91DC-C3F205674644.jpeg
    310.9 KB · Views: 12
  • EA403925-D6F5-4205-BE05-837D5EF260BC.jpeg
    342.7 KB · Views: 13
  • 6768BF77-C796-4A3F-855F-73F268589DA2.jpeg
    328.2 KB · Views: 21
Last edited:

PrayingMantis

Senior Member
Barrel and sights. The rear sight components are primarily what need cleaned.


Attachments

  • 960B50C5-3681-43EE-9681-1F2C676F18CF.jpeg
    213.4 KB · Views: 11
  • 7E29C055-B6A3-400F-AAE0-EC5D58FB004E.jpeg
    184.9 KB · Views: 10
  • 01E6A111-F5CF-4156-B34F-028F9979AECE.jpeg
    205.9 KB · Views: 9
  • DA614FE5-85D3-4300-B006-47F2B424BD38.jpeg
    240 KB · Views: 6
  • 97C3E5CF-68CC-4A45-A417-C8828C3237A6.jpeg
    219.4 KB · Views: 7
  • FF97CE1F-797E-4194-924D-E9308B4B3CC6.jpeg
    273.9 KB · Views: 8
  • AABAF600-3120-49B0-BE60-19C140513298.jpeg
    327.2 KB · Views: 8
  • ABA22DE7-B487-49EF-B7FD-9F9FD90B35AF.jpeg
    346.1 KB · Views: 8
  • AAA4026D-1572-41CD-92C2-2B7A616572EE.jpeg
    336.5 KB · Views: 8
  • E0CD416B-1695-47BF-A927-EE1A90AB8E18.jpeg
    447.1 KB · Views: 9

PrayingMantis

Senior Member
Triggerguard, magazine components, and bands. All Schilling made.


Attachments

  • B3964AC3-D402-4485-AFDD-1FA38228B543.jpeg
    308.1 KB · Views: 4
  • 454EFAC0-2B12-4F5F-B281-DE277DD82D05.jpeg
    328.8 KB · Views: 4
  • C419C93E-A272-4B29-AA21-A4E0C2E1F3E3.jpeg
    334.5 KB · Views: 4
  • 5F222DC2-462B-4725-9F10-C90916835525.jpeg
    383.4 KB · Views: 4
  • AD2783A8-E35E-451B-AF2F-3B8265A7F8E3.jpeg
    275.6 KB · Views: 5
  • 6DD5B6DF-6A12-4B53-9F0E-83BEDC0B03EF.jpeg
    426.4 KB · Views: 5
  • 42E17598-59DE-4DE3-BC5C-362DFBA57716.jpeg
    354.6 KB · Views: 5
  • C98851BC-61E7-422B-8F08-5B23A50634F6.jpeg
    417.7 KB · Views: 4
  • 4AAD2A0A-7116-4F93-8142-9EBA37559365.jpeg
    390.7 KB · Views: 4

PrayingMantis

Senior Member
Stock metal.


Attachments

  • 7FEDACA2-431F-4F76-BDD7-A95601E2FE2C.jpeg
    529.1 KB · Views: 6
  • D2135E34-6B39-43EB-945B-3C2BA4E31182.jpeg
    273.7 KB · Views: 5
  • 85BB1EC5-4658-4D82-B82F-273245232D4C.jpeg
    359.8 KB · Views: 4
  • 8CEB19D8-300A-4FE9-BEBA-7B768EEDAD20.jpeg
    280.1 KB · Views: 4
  • 468A47F4-41A9-4C57-BF98-ED94A5D84DC1.jpeg
    268.7 KB · Views: 4
  • D563CD42-9813-4627-84D8-AC4E5B26550C.jpeg
    278.4 KB · Views: 3
  • E1964DA1-1675-4940-9CB2-159AC2B7DABF.jpeg
    432 KB · Views: 2
  • 7DDA8801-4D4A-4909-A582-717D74B1F5E8.jpeg
    218.4 KB · Views: 4
  • 139C040D-55DC-47BD-BF54-AC3FAC3082CA.jpeg
    549 KB · Views: 6

PrayingMantis

Senior Member
Stock and handguard. There is some putty in the stock I’m trying to remove.


Attachments

  • C10FE0BE-8156-40F1-9D27-6B804ABCCE79.jpeg
    353.9 KB · Views: 6
  • 073E9768-D828-4322-A374-622385551CD8.jpeg
    272 KB · Views: 4
  • 0D3FA431-59A8-4462-81E4-2A0522FE47C3.jpeg
    320.9 KB · Views: 4
  • 0C4E6030-EBDE-4A7A-88C1-417357614B08.jpeg
    352.5 KB · Views: 4
  • B4371944-E2EC-4DCA-89AB-24B199F6C515.jpeg
    449.3 KB · Views: 3
  • 462AD2FA-3D77-4B42-9F3F-3724F17E4985.jpeg
    410.6 KB · Views: 6
  • 286152B8-7151-47C0-A691-BE52A393BB75.jpeg
    190 KB · Views: 6
